Product Overview
openQCM Wi2 is the entry level Quartz Crystal Micobalance, capable of monitoring frequency variation in real-time. A highly sensitive and very easy to use device, suitable to those who want to get started with QCM technology
openQCM Q-1 is an open hardware device capable of measuring mass variation on quartz crystal surface on molecular scale. The device is particularly suited for thickness monitoring and gaseous sensing, but can also be used in liquid environment.
The electronics interface based on an oscillator driver makes the frequency monitoring fully automatic, making the device highly sensitive and easy-to-use

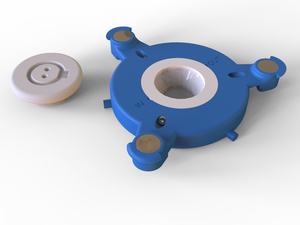

The modular design makes the device flexible. The main body is separated from the the sensor module, which features a practical and innovative enclosure system.
openQCM Wi2 is a truly plug and play scientific device. Each instrument is mounted and tested in order to guarantee the best performances.
Dissipation monitoring | No |
---|---|
Frequency Range | 5 and 10 MHz |
Measurement Mode |
Frequency (Fundamental) |
Nominal Sensitivity | Depending on sensor resonance frequency (e.g.: 4.42 x 10 -9 g Hz-1 cm-2 @10 MHz ) |
Maximum mass sensitivity in liquid | ~ 0.8 ng/cm2 (5 pg/mm2) |
Maximum mass sensitivity in air | ~ 0.3 ng/cm2 (10 pg/mm2) |
Typical noise | 0.3 Hz peak to peak (RMS) in liquid |
Time resolution | 1 s |
Compatible quartz sensor diameters | 14 mm and 25.4 mm (1 In.) |
Fluidic Window Material | PMMA (Default) shipped with the included Sensor Module |
Temperature Sensor | I2C - MCP9808-E/MS (integrated the included Sensor Module) |
Software | Java |
OS Compatibility | Windows, Mac, Linux |
Electrical Connection | via Micro-USB (USB 2.0 PC side) |
Data communication | USB 2.0 |
Input Voltage | 5 VDC |
Max current | max 150 mA @ 5 VDC |
Total weight | 115 g |
Length | 56.3 mm |
Height | 29mm |
Width | 67 mm |
Working temperature | 0 °C - 50 °C |
Colour | Black & Blue |
Case Material | Nylon plastic PA2200 |
